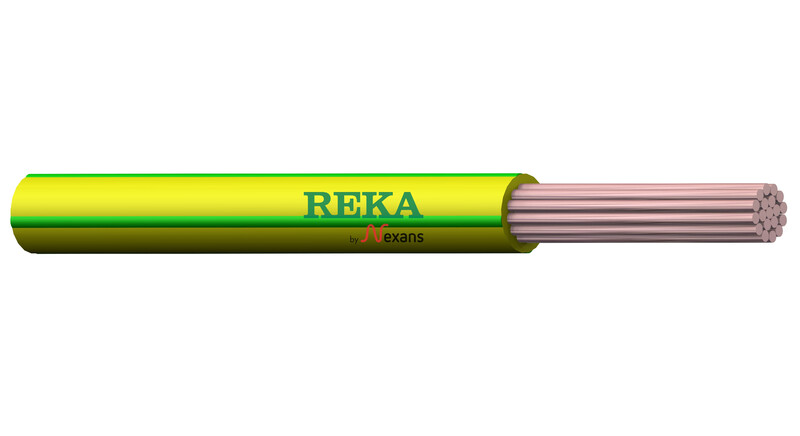

INSTALLATION LEAD MK 35 YELLOW/GREEN
Product code
0452928
Installation cable for fixed internal installation. In installation pipes and within device internal wiring. The cable's maximum allowable operating temperature is 90 °C. The cable insulation must be protected from UV radiation. The cable is non-propagating in fire class Eca. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor35 mm²
AWG size2
Nominal cross section conductor (AWG)33.6 kcmil
Diameter conductor7.65 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C0.524 Ohm/km
Number of cores1
Twisted coresno
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Product codes
SAPAAA310
STK0452928
PLC0452928
GTIN/EAN6410004529287
Vendor material number0452928
Basic information
Package measurements (L x W x H)1000 x 10 x 10 mm
Package volume0.1 l
Package weight0.385 kg
Base unitMeter
Package units5000
Package contents–
UNSPSC26121641
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
The country of origin stated by the supplierFinland
Documents (3)
Links
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.464
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
