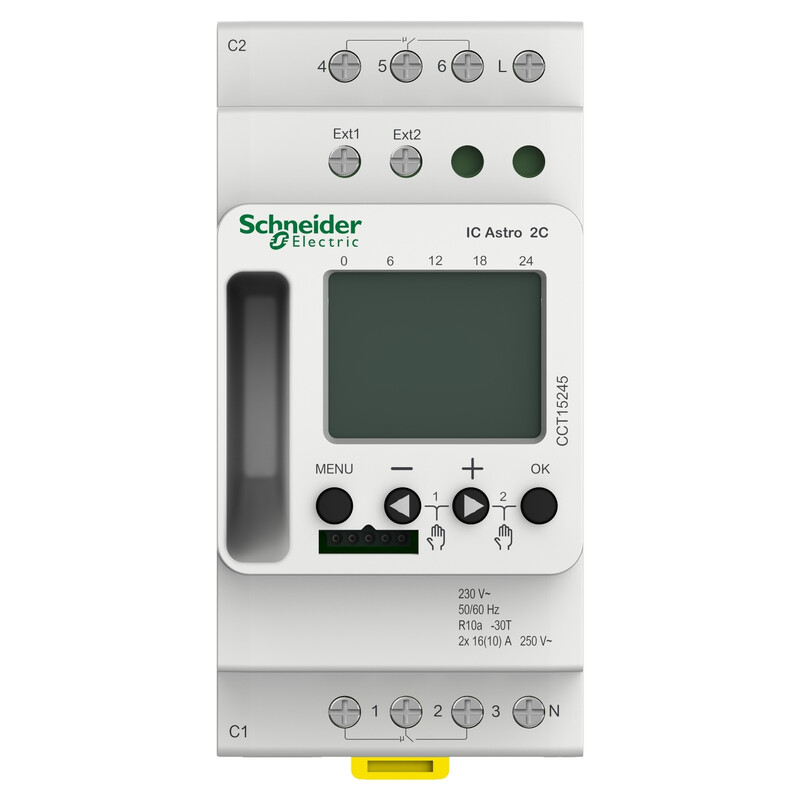

DIGITAL TIMER ACTI 9 IC ASTRO 2C SMART
Product code
2609913
Acti 9 IC Astro 2C SMART programmable dusk sensor This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Twilight switch for distribution board (EC001645)
Rated voltage230 V
Rated frequency50-60 Hz
Max. incandescent lamp load2600 W
Max. load fluorescent lamp2300 VA
Max. load fluorescent lamp (Duo circuit)2300 VA
Max. load fluorescent lamp (parallel compensated)730 VA
Max. switching current (cos phi = 0.6)10 A
Rated switch current16 A
With programmable overnight shutoffyes
Push button inputyes
Mounting methodDIN rail
Width in number of modular spacings2.5
Built-in depth67 mm
Degree of protection (IP)IP20
Degree of protection (IP) light sensorOther
Product codes
SAPCKP126
STK2609913
PLC2609913
GTIN/EAN3606489524555
Manufacturer part numberCCT15245
Vendor material number2609913
Basic information
Package measurements (L x W x H)105 x 80 x 65 mm
Package volume0.546 l
Package weight0.184 kg
Base uniteach
Package units1 / 40 / 960
Package contents–
UNSPSC39122208
BrandSCHNEIDER ELECTRIC
VendorSCHNEIDER ELECTRIC ASENNUSKALUST
Documents (3)
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
