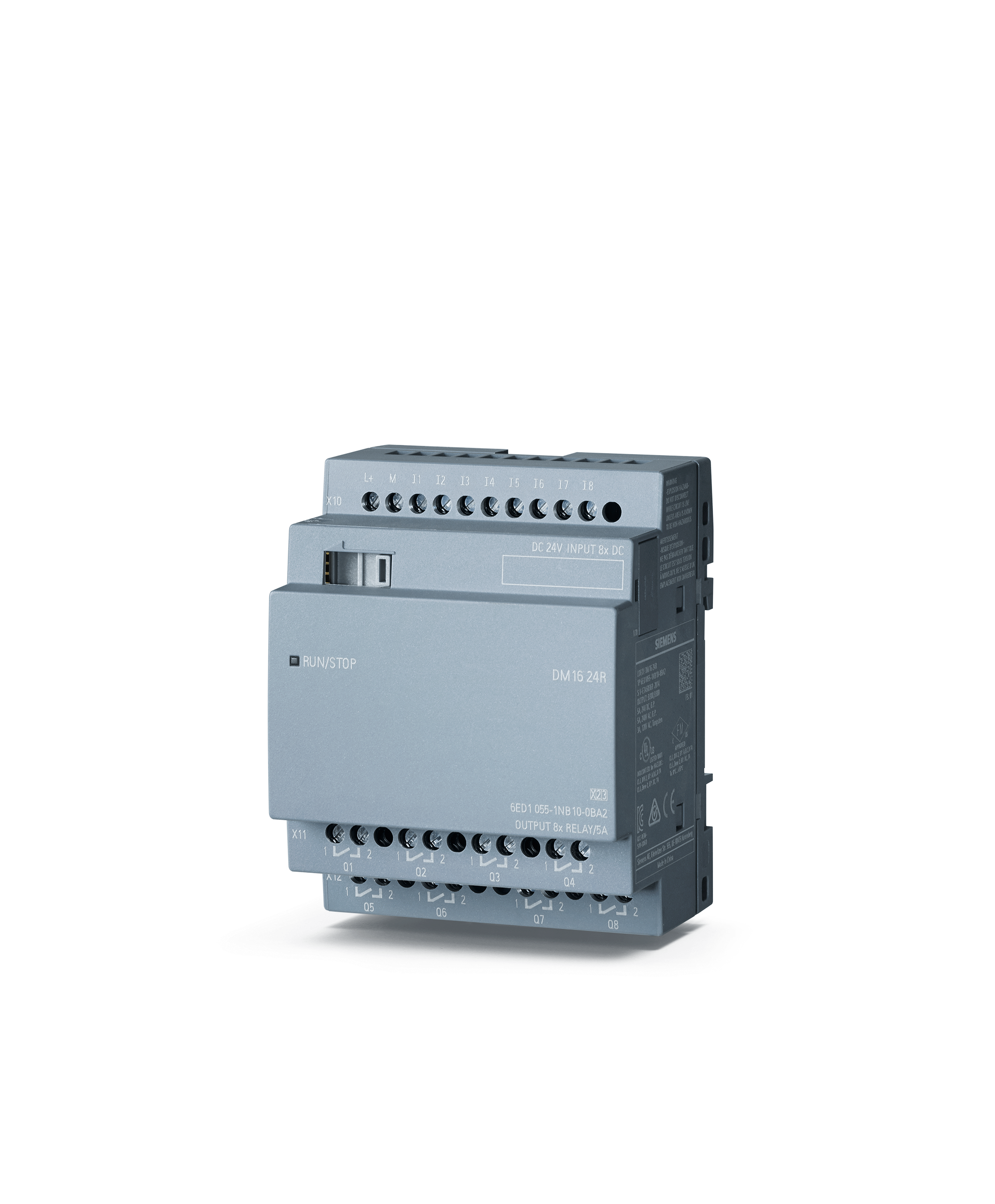

LOGO! DM16 24R, 8 DI/8 DO 6ED1055-1NB10-0BA2 AS
Product code
2702214
Logo! DM16 24R, expansion module, PU/I/O: 24V DC/24V DC/relay, 8 DI/8 DO, 4TE
LOGO! DM16 24R, 24V 8xDI/8xDO relay outputs 0BA8 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)PLC digital I/O-module (EC001419)
Supply voltage DC20.4-28.8 V
Voltage type (supply voltage)DC
Number of digital inputs8
Number of digital outputs8
Digital inputs configurableyes
Digital outputs configurableyes
Input current at signal 12 mA
Permitted voltage at input0 - 28.8 V
Type of voltage (input voltage)DC
Type of digital outputRelay
Output current5 A
Permitted voltage at output0 - 265 V
Type of output voltageAC/DC
Short-circuit protection, outputs availableno
Redundancyno
Product codes
SAPGCR524
STK2702214
PLC2702214
GTIN/EAN4034106029500
Manufacturer part number6ED1055-1NB10-0BA2
Vendor material number6ED1055-1NB10-0BA2
