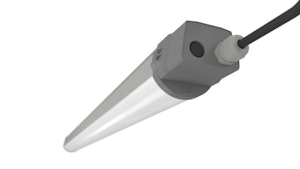

BASIC BATTERN LUMINAIRE MODE P P04MW 840HE DA 66W IP66 -C20-D

The rigid SNEP® MODE P is a natural choice for lighting in parking halls, production areas, and warehouses thanks to its wide light distribution. The high IP65 protection rating across a broad range of operating temperatures and light output levels enables installation in various environments. The luminaire is available in three lengths and multiple connection and mounting options. The product is designed for quick and easy installation.

The mounting brackets for the SNEP® Mode series must be ordered separately.

Features

• Luminous flux: 9950 lm, available 1500-16650 lm
• Power: 66 W, available 10-113 W
• Protection rating (IP rating): IP65
• Mechanical durability (IK rating): IK08
• Protection class: I
• Operating ambient temperature Ta: -25 - +35°C / -40 - +55 °C depending on power and connection unit version
• Body structure: body made from recycled Purso Greenline aluminum profile
• Color: polyester powder coated white RAL 9010
• Optics: prismatic PC cover
• Color rendering and color temperature: 4000 K CRI above 80, MacAdam 3 SDCM, available 3000 K / 5000 K
• Control: DALI, available on/off and industrial connection units (-40 - +55 °C, 4kV surge protection)
• Luminaire lifespan: L80B50 100 000 h, failure rate 100 000 h / 10 %
• Warranty: 5 years.
• Length: 1140 mm, width 85 mm, height 80 mm
• Connection: connection end, pass-through 5x2.5 mm², no cable

This product description is an automated translation of the original Finnish description.
