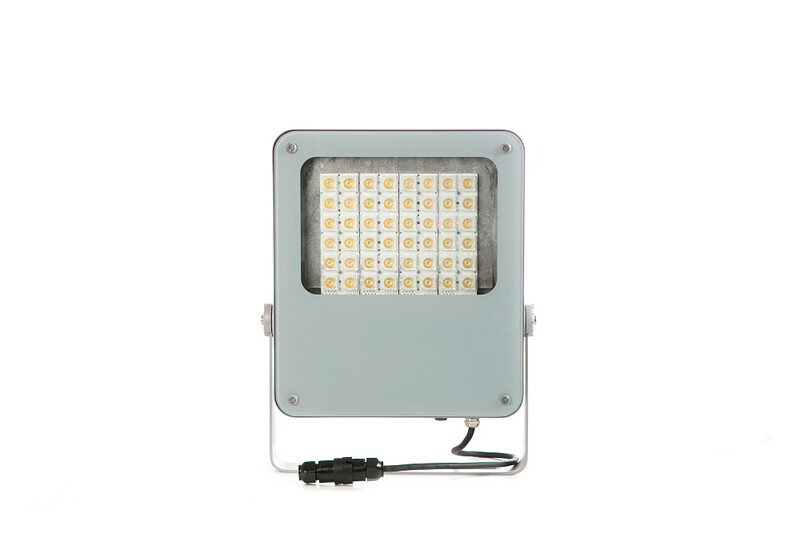

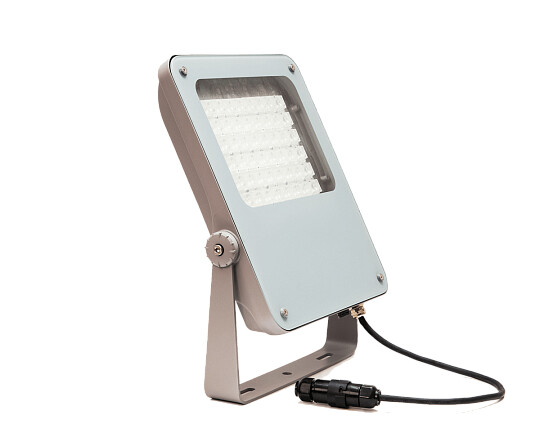

FLOODLIGHT ODIN DKF293 AST4 18000LM 135W
Product code
4555507
TAKTON DKF293
Elegant low-profile luminaire offering a cost-effective solution for area lighting. Combines energy efficiency, high-quality components, and reliable construction.
Features:
• Power: 135 W
• Luminaire luminous flux: 18000 lm
• Luminous efficacy: 133 lm/W
• Color temperature: 4000K
• Color rendering index (CRI): 70
• Weight: 6.3 kg
• Rated voltage: 220–240 V / 50–60 Hz
• Power factor: 0.98

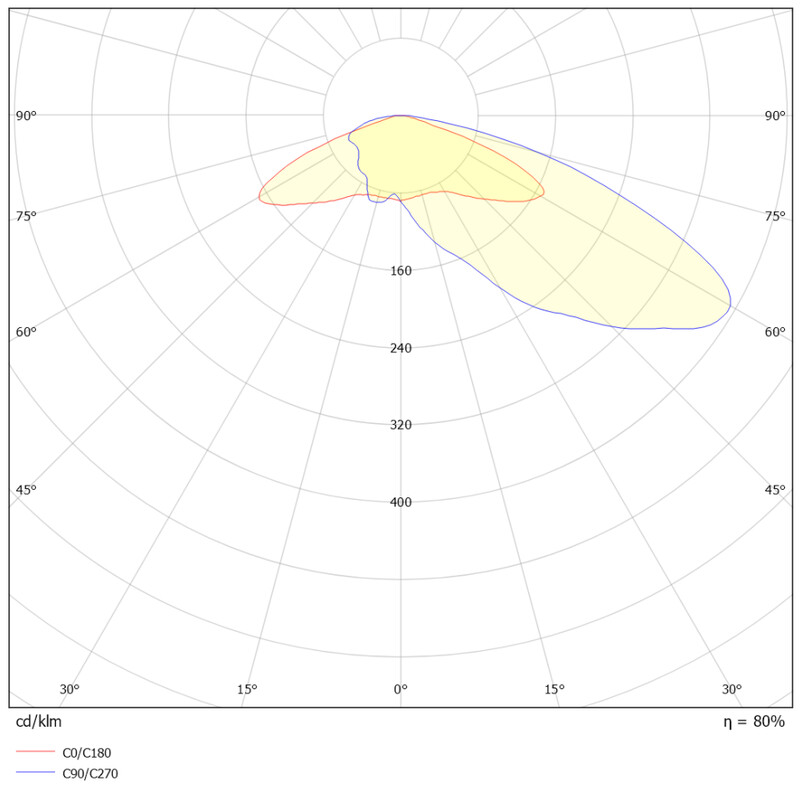

• Light distribution: Asymmetric
• Optics: Age-resistant PMMA lenses
• Light source: OSRAM LED modules
• LED color shift: < 5 %
• Surge protection: 4 kV
• Insulation class: I
• Driver: Integrated PHILIPS Xitanium Outdoor
• Service life: 100 000 hours, L90B10
• Maintenance: Screw-openable
• Electrical connection: 0.4 m cable as standard
• Housing material: Die-cast powder-coated aluminum
• Color: Gray
• Protection class: IP66
• Impact resistance: IK08
• Lens: Tempered flat glass
• Mounting: U-bracket fixture
APPLICATIONS
• Pole height
• Parking areas, sports facilities, and public space lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
AdjustabilityRotatable
Lamp typeLED not exchangeable
Housing colourGrey
Nominal voltage220 - 240 V
Protection class according to IEC 61140I
Colour temperature4000 - 4000 K
Product codes
SAPDLS604
STK4555507
PLC4555507
Manufacturer part number600151431012
Vendor material number600151431012
Basic information
Package measurements (L x W x H)490 x 400 x 110 mm
Package volume21.56 l
Package weight6.3 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39111626
BrandTAKTON
VendorTAKTON OÜ
