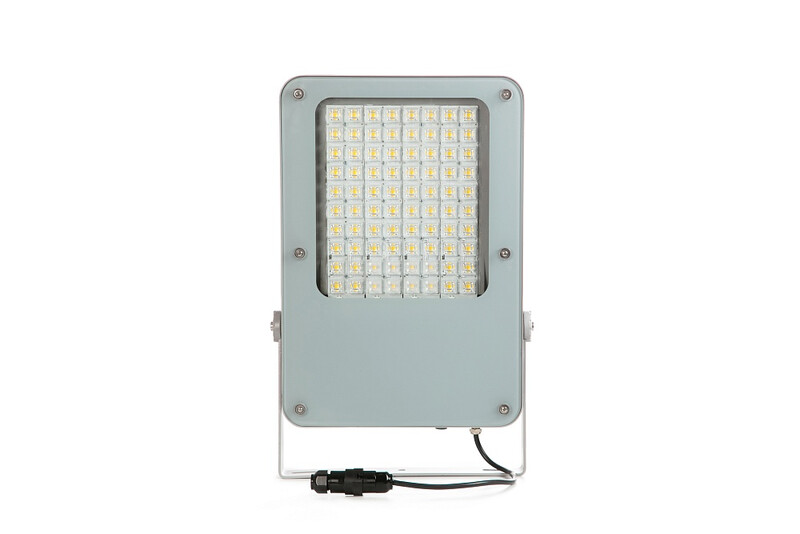

FLOODLIGHT ODIN DKF294 ASWD 21000LM 150W

Product code
4555519
TAKTON DKF294 Elegant low-profile luminaire offering a cost-effective solution for area lighting. Combines energy efficiency, high-quality components, and reliable construction. Features: • Power: 150 W • Luminaire luminous flux: 21000 lm • Luminous efficacy: 140 lm/W • Color temperature: 4000K • Color rendering index (CRI): 70 • Weight: 8.5 kg • Rated voltage: 220–240 V / 50–60 Hz • Power factor: 0.98 • Light distribution: Asymmetric • Optics: Aging-resistant PMMA lenses • Light source: OSRAM LED modules • LED color shift: < 5 % • Surge protection: 4 kV • Insulation class: I • Driver: Integrated PHILIPS Xitanium Outdoor • Service life: 100 000 hours, L90B10 • Maintenance: Screw-openable • Electrical connection: 0.4 m cable as standard • Housing material: Die-cast powder-coated aluminum • Color: Gray • Protection class: IP66 • Impact resistance: IK08 • Lens: Tempered flat glass • Mounting: U-bracket fixture APPLICATIONS • Pole height • Parking areas, sports facilities, and public space lighting This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
AdjustabilityRotatable
Lamp typeLED not exchangeable
Housing colourGrey
Nominal voltage220 - 240 V
Protection class according to IEC 61140I
Colour temperature4000 - 4000 K

Product codes

SAPDLS610
STK4555519
PLC4555519
Manufacturer part number600151431319
Vendor material number600151431319

Basic information

Package measurements (L x W x H)580 x 400 x 110 mm
Package volume25.52 l
Package weight8.5 kg
Base uniteach
Package units1 / 40
Package contents
UNSPSC39111626
BrandTAKTON
VendorTAKTON OÜ
