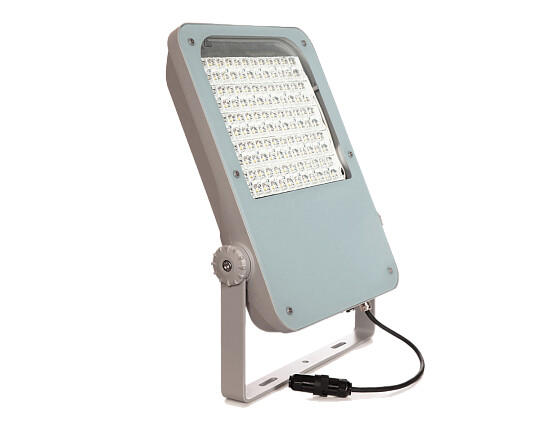

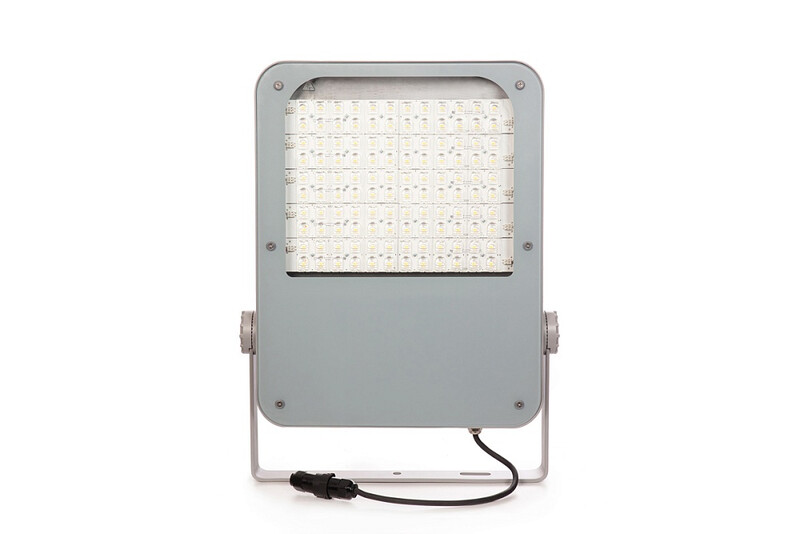

FLOODLIGHT ODIN DKF295 AST4 36900LM 258W
Product code
4555511
TAKTON DKF295
Elegant low-profile luminaire offering a cost-effective solution for area lighting. Combines energy efficiency, high-quality components, and reliable construction.
Features:
• Power: 258 W
• Luminaire luminous flux: 36900 lm
• Luminous efficacy: 143 lm/W
• Color temperature: 4000K
• Color rendering index (CRI): 70
• Weight: 11 kg
• Rated voltage: 220–240 V / 50–60 Hz
• Power factor: 0.98

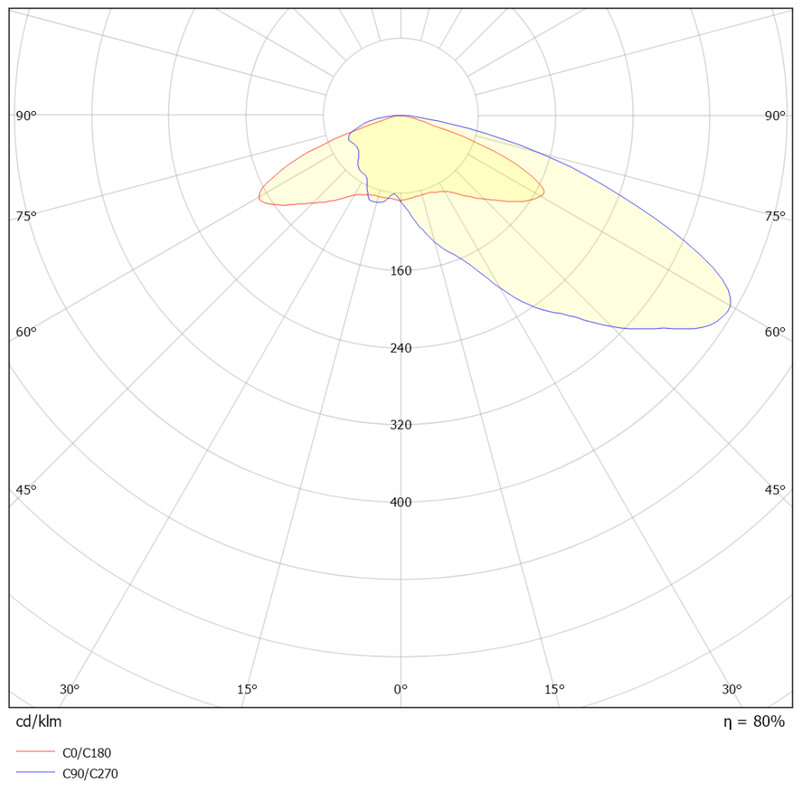

• Light distribution: Asymmetric
• Optics: Age-resistant PMMA lenses
• Light source: OSRAM LED modules
• LED color shift: < 5 %
• Surge protection: 4 kV
• Insulation class: I
• Driver: Integrated PHILIPS Xitanium Outdoor
• Service life: 100,000 hours, L90B10
• Maintenance: Screw-openable
• Electrical connection: 0.4 m cable as standard
• Housing material: Die-cast powder-coated aluminum
• Color: Gray
• Protection class: IP66
• Impact resistance: IK08
• Lens: Tempered flat glass
• Mounting: U-bracket fixture
APPLICATIONS
• Pole height
• Parking areas, sports facilities, and public space lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
AdjustabilityRotatable
Lamp typeLED not exchangeable
Housing colourGrey
Nominal voltage220 - 240 V
Protection class according to IEC 61140I
Colour temperature4000 - 4000 K
Product codes
SAPDLS600
STK4555511
PLC4555511
Manufacturer part number600151431393
Vendor material number600151431393
Basic information
Package measurements (L x W x H)540 x 660 x 150 mm
Package volume53.46 l
Package weight11 kg
Base uniteach
Package units1 / 16
Package contents–
UNSPSC39111626
BrandTAKTON
VendorTAKTON OÜ
