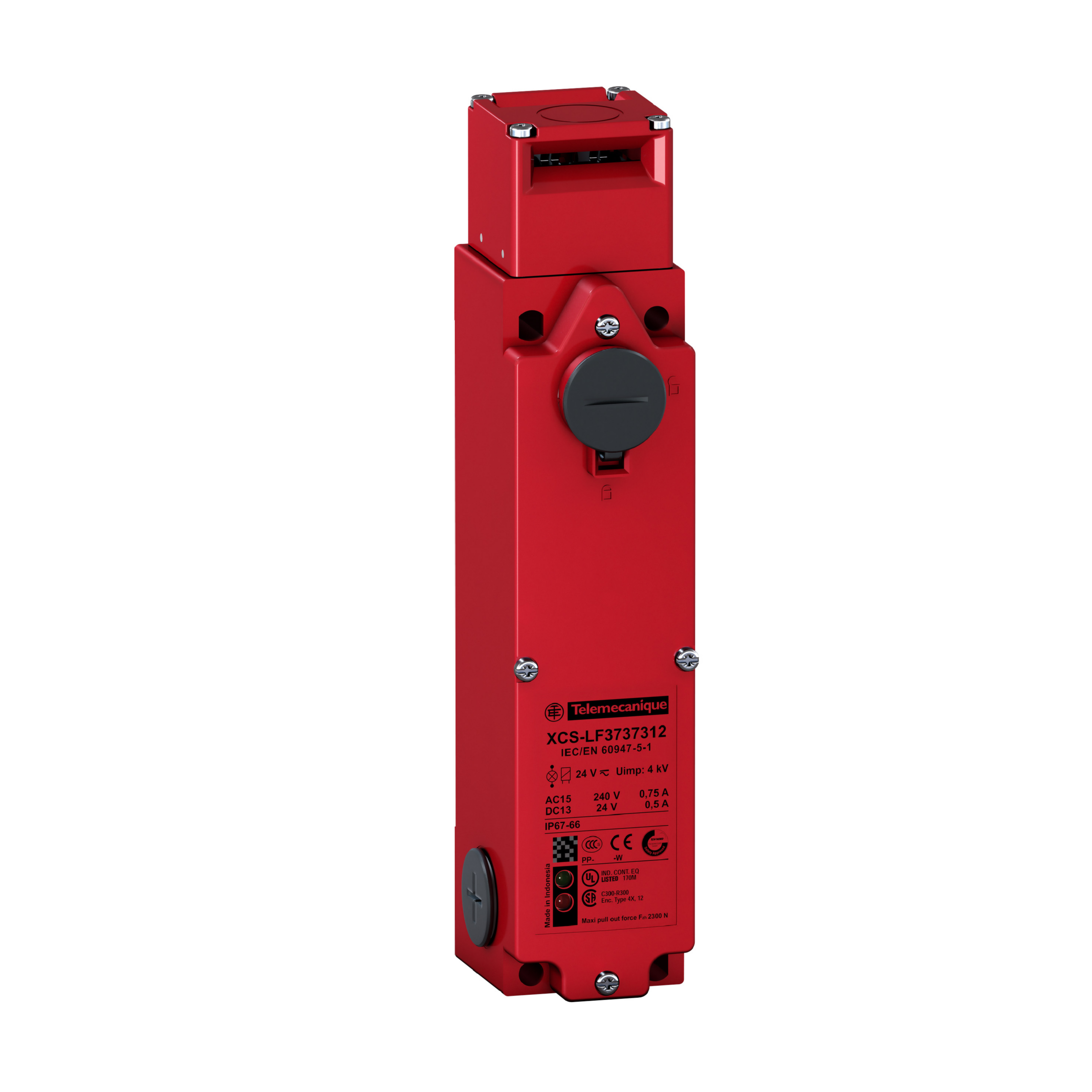

SAFETY INTERLOCK PREVENTA SAFETY SWITCH WITH MAGNET
Product code
2318048
Prevent safety switch.
Prevent switches protect users from various industrial machines:
- In case of a fault, the machine stops
- New switches save installation time and space
- One of the most comprehensive ranges of safety switches on the market
- Increased productivity thanks to a dedicated third contact for diagnostics
- Suitable for all industries using hazardous machines, such as:
- Packaging
- Handling
- Robotics
- Presses
- + many more This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Position switch with guard locking (EC002593)
With status indicationyes
Suitable for safety functionsyes
Guard locking force20 N
With escape releaseno
Type of guard lockingQuiescent current principle
With auxiliary releaseno
Rated control supply voltage magnet drive AC 50 Hz230 - 230 V
Rated control supply voltage magnet drive AC 60 Hz230 - 230 V
Rated control supply voltage magnet drive DC230 - 230 V
Width sensor44 mm
Height of sensor205 mm
Length of sensor51 mm
Number of safety auxiliary contacts0
Number of contacts as normally closed contact2
Number of contacts as normally open contact1
Product codes
SAPGCM545
STK2318048
PLC2318048
GTIN/EAN3666916047606
Manufacturer part numberXCSLF3737342
Vendor material numberXCSLF3737342
Basic information
Package measurements (L x W x H)73 x 228 x 57 mm
Package volume0.949 l
Package weight1.245 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121522
BrandTELEMECANIQUE
VendorTMSS DENMARK APS
