DISTRIBUTION BOARD FL/SU FE BULLDOG3836-1200 50A IP30 FE
Product code
3332138

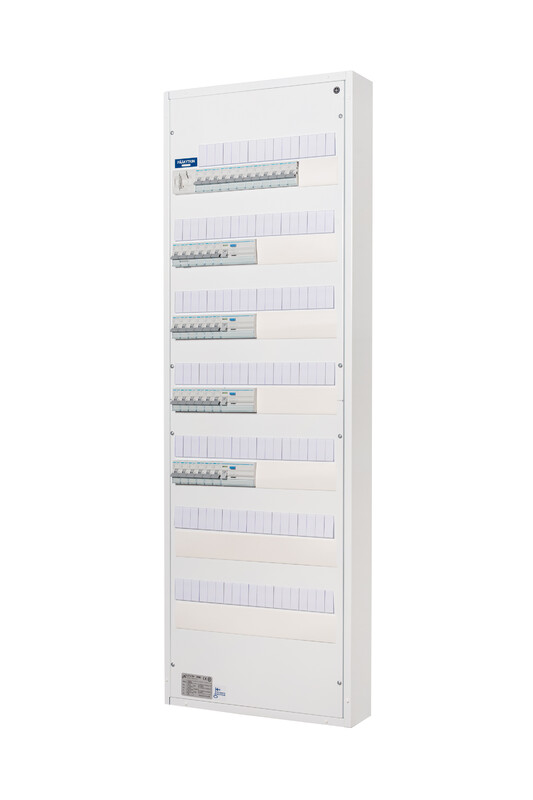

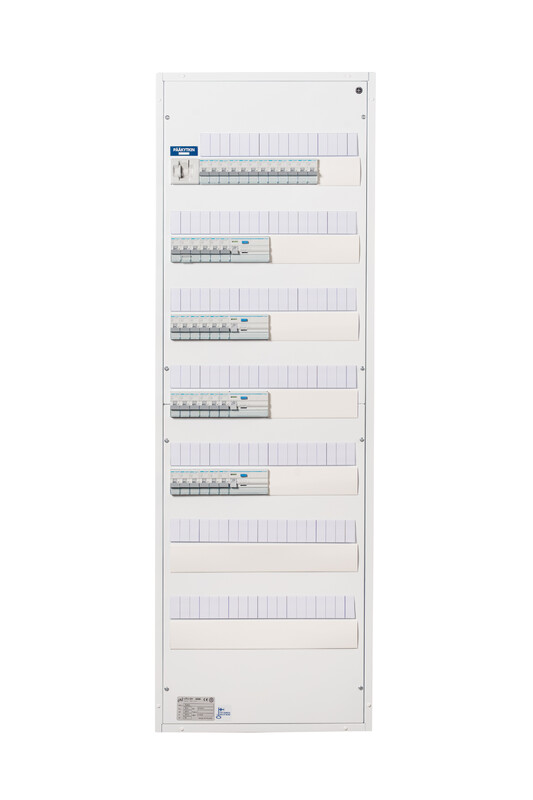

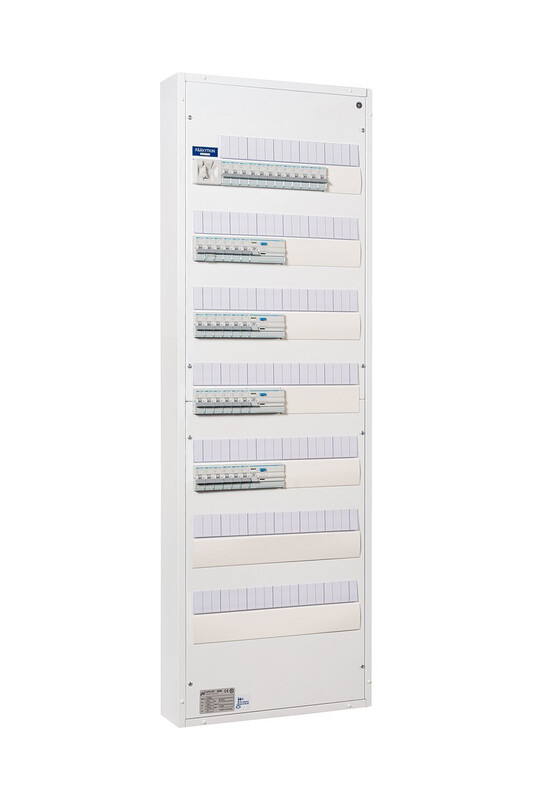

Group center IP30. For surface and flush mounting. Rated current 50A. 36 circuit breakers, 4 residual current devices (4-pole, 30mA 25A). Door to be ordered separately (3315901). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board equipped (EC002288)
Mounting methodSurface mounted/recessed mounted
Number of rows7
Number of phases3
ProtectionMiniature-/earth leakage circuit breaker
Number of single-phase miniature circuit breakers (MCB)36
Number of three-phase miniature circuit breakers (MCB)0
Release characteristicC
Total number of groups36
Number of direct groups12
Number of light groups0
Number of groups behind earth leakage switch24
Number of earth leakage circuit breakers0
Number of earth leakage switches 30 mA4
Number of earth leakage switches 300 mA0
Number of arc fault detection devices AFDD0
Product codes
SAPDNG171
STK3332138
PLC3332138
GTIN/EAN6438526003917
Manufacturer part numberBULLDOG3836-1200
Vendor material number3332138
Basic information
Package measurements (L x W x H)1225 x 510 x 150 mm
Package volume93.712 l
Package weight12.6 kg
Base uniteach
Package units1 / 14
Package contents–
UNSPSC39121311
BrandUTU
VendorUTU OY
The country of origin stated by the supplierFinland
