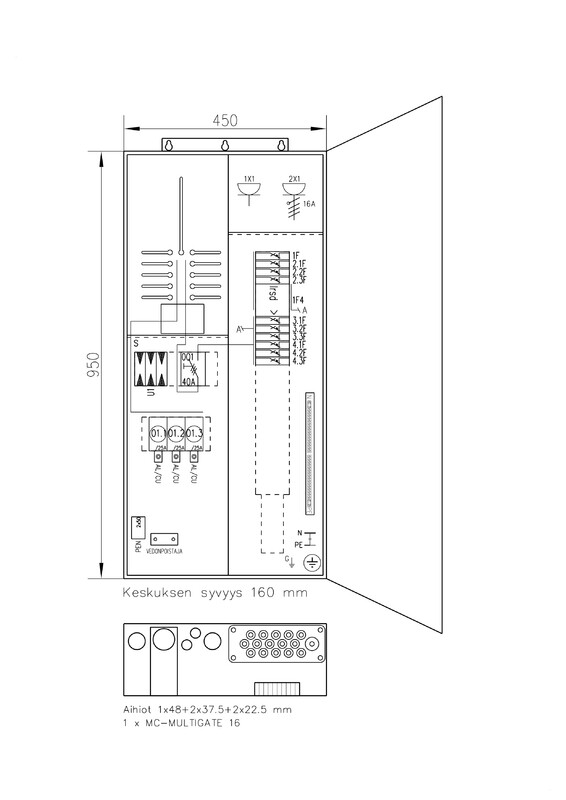

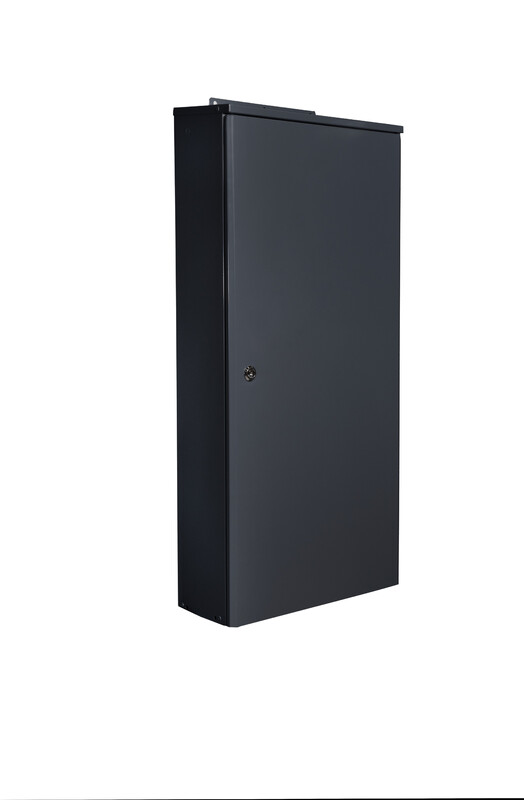

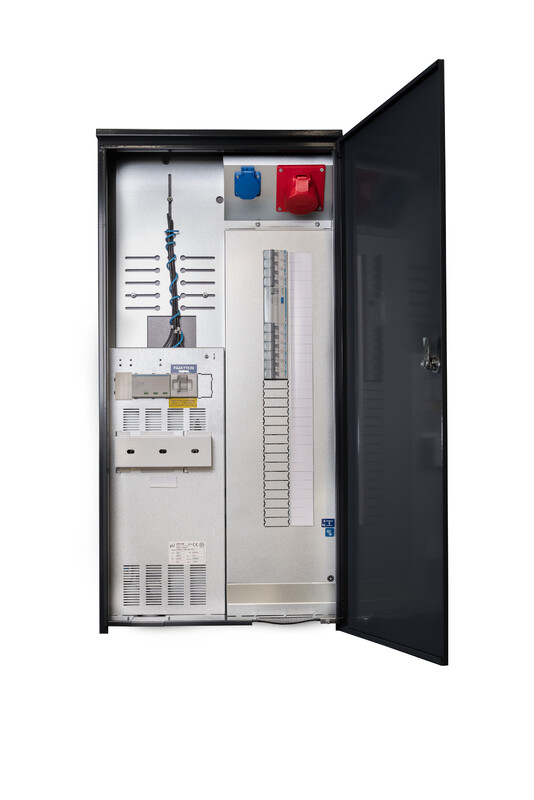

METERING PANEL BEAGLE 3406P25+PR-Y X 25A IP34 FE

IP34 measurement center with surge protection, housing made of hot-dip galvanized steel sheet. For surface mounting. Delivery does not include plug fuse accessories. Equipped with combined surge protector Hager SPA930 (T1+T2), alarm contact can be utilized for remote fault notifications. Note! The surge protector's varistor cartridges must be removed during insulation resistance measurement. Features

• Rated current 25 A
• 1-group socket outlet
• 3-phase 16 A socket outlet protected by a 30 mA residual current device
• 6 circuit breakers
• Color graphite gray

Beagle outdoor measurement centers are well suited as leisure home distribution boards. These "cottage centers" can also be used for temporary construction site power distribution. Surge-protected centers provide protection against lightning and overvoltage. High-quality Hager component-equipped, surge-protected centers are available in two different models: one with gas discharge tube protection and one with varistor protection. The range includes distribution boards with rated currents of 25 A and 50 A.

This product description is an automated translation of the original Finnish description.
