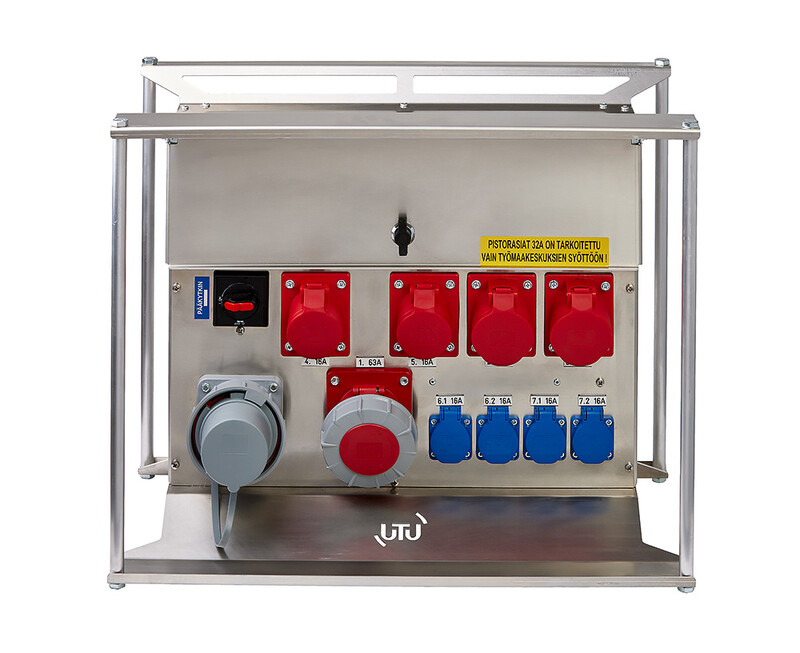

SUBCENTRE FOR WORKSITE MOPSI 63.1224 63A IP44 AL
Product code
3436706
Worksite center IP44, frame made of aluminum. Strong and durable tubular structure that protects the sockets.
Features- 16A sockets protected by 30mA residual current device, 32A/63A sockets protected by 500mA residual current device
- 1 socket (5x63A), 2 sockets (5x32A), 2 sockets (5x16A), and 4 sockets (Suko)
The Mopsi worksite center is suitable for temporary power distribution at construction sites and other temporary power distribution needs. Worksite centers are built to withstand demanding site conditions and, thanks to their lightweight construction, are easy to move as needed. The range covers worksite centers rated for nominal currents from 16A to 63A.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelDistributor cabinet
Rated voltage400 V
Rated current63 A
Connected load43 kVA
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)1
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Product codes
SAPCNA113
STK3436706
PLC3436706
GTIN/EAN6410034367064
Manufacturer part numberMOPSI63.1224
Vendor material number3436706
Basic information
Package measurements (L x W x H)522 x 650 x 337 mm
Package volume114.344 l
Package weight19 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39121309
BrandUTU
VendorUTU OY
