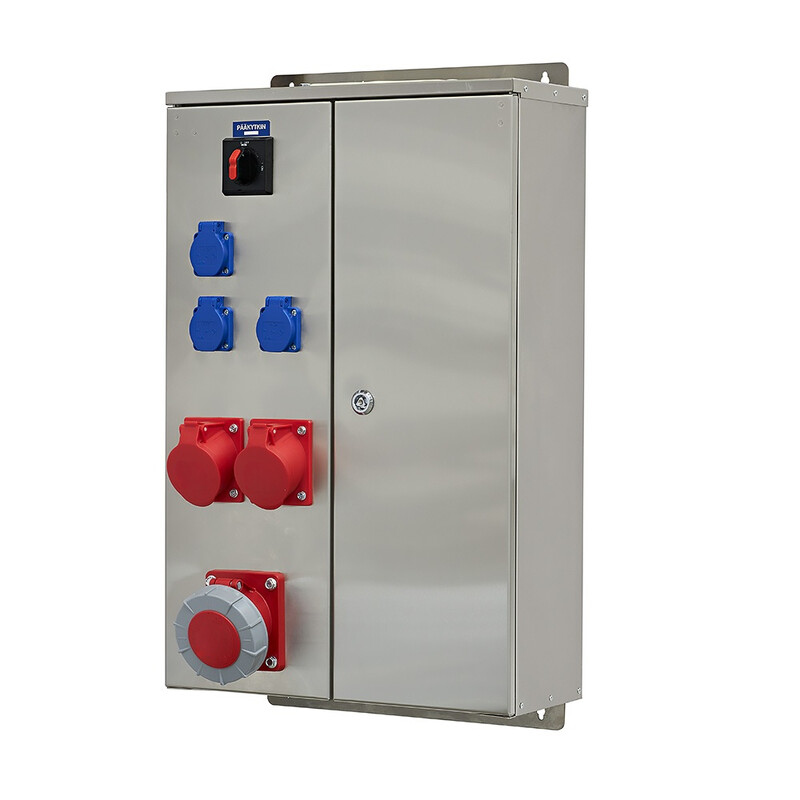

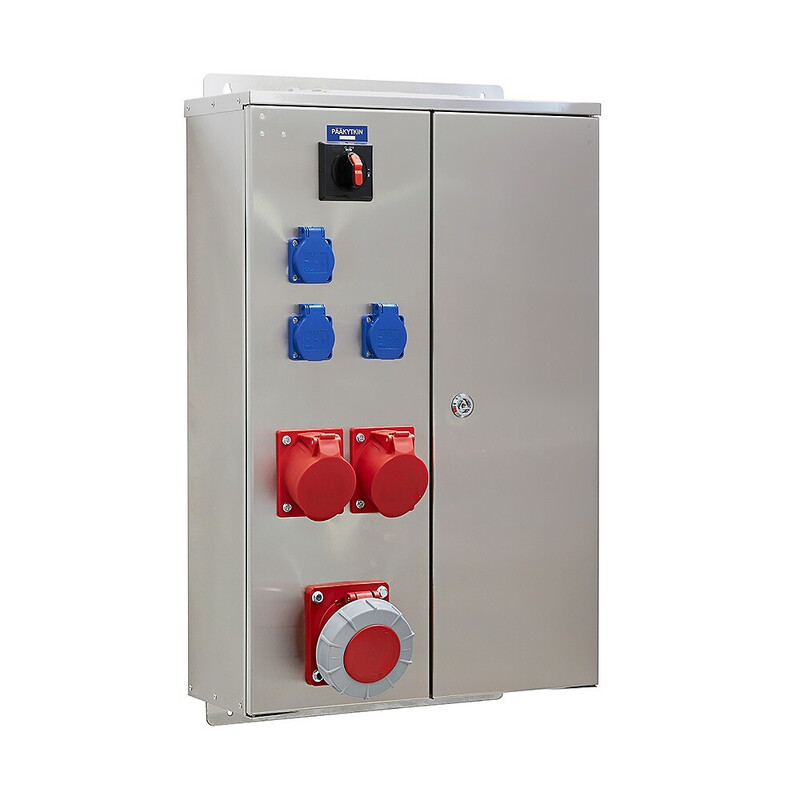

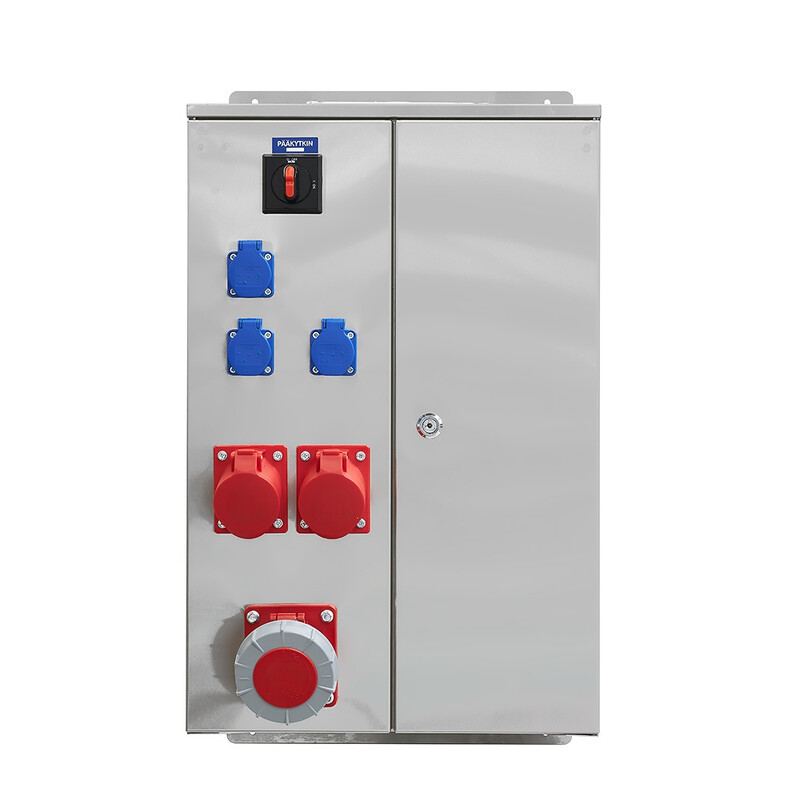

WORK PLACE CENTRE PINSERI 125.1113 125A IP44 RST
Product code
3436819
IP44 socket center, housing made of stainless steel (RST). Optional accessory: saddle flap (3436821).
Features- Rated current 125A
- Socket outlets 16A and 32A protected by 30mA residual current device, residual current device space provided for 63A socket outlet
- Socket outlets: 1 unit (5x63A), 1 unit (5x32A), 1 unit (5x16A), and 3 units (Suko)
The Pinseri socket center is designed for demanding applications such as industrial work sites, ports, farms, and warehouses. The products are easy to use and install. The covers for the socket outlets and protective devices are hinged, facilitating access to the center. Both ends of the center are equipped with cable entry knockouts, allowing the supply cable to be connected from above or below. Internal fittings are provided for cable securing. The range covers socket centers with rated currents from 63A to 125A.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)CEE socket outlet combination (IEC 60309) (EC000379)
CEE socket outlet 16 A1x16A5p400V
CEE socket outlet 32 A1x32A5p400V
CEE socket outlet 63 A1x63A5p400V
CEE socket outlet 125 ANone
Number of socket outlets with protective contact CEE 7/3 (type F)3
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of socket outlets Danish standard (earthing pin, type K)0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Other fixtures and/or empty locations0
Power loss0 W
ProtectionOvercurrent switch
Leakage current typeA
Product codes
SAPCNA110
STK3436819
PLC3436819
GTIN/EAN6410034368191
Manufacturer part numberPINSERI125.1113RST
Vendor material number3436819
Basic information
Package measurements (L x W x H)758 x 452 x 264 mm
Package volume90.451 l
Package weight16 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121308
BrandUTU
VendorUTU OY
The country of origin stated by the supplierFinland
Documents (13)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
