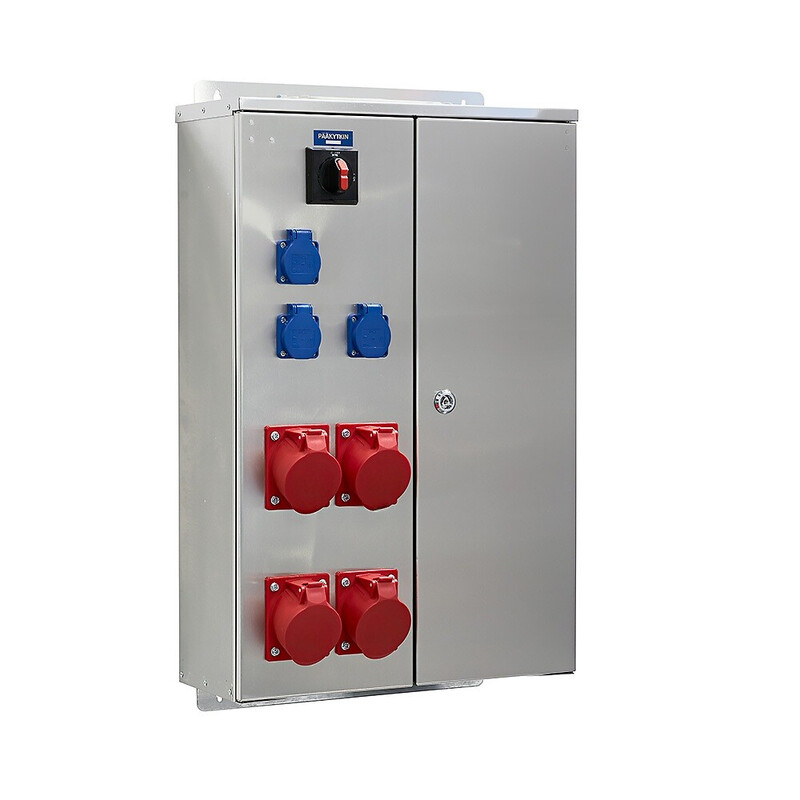

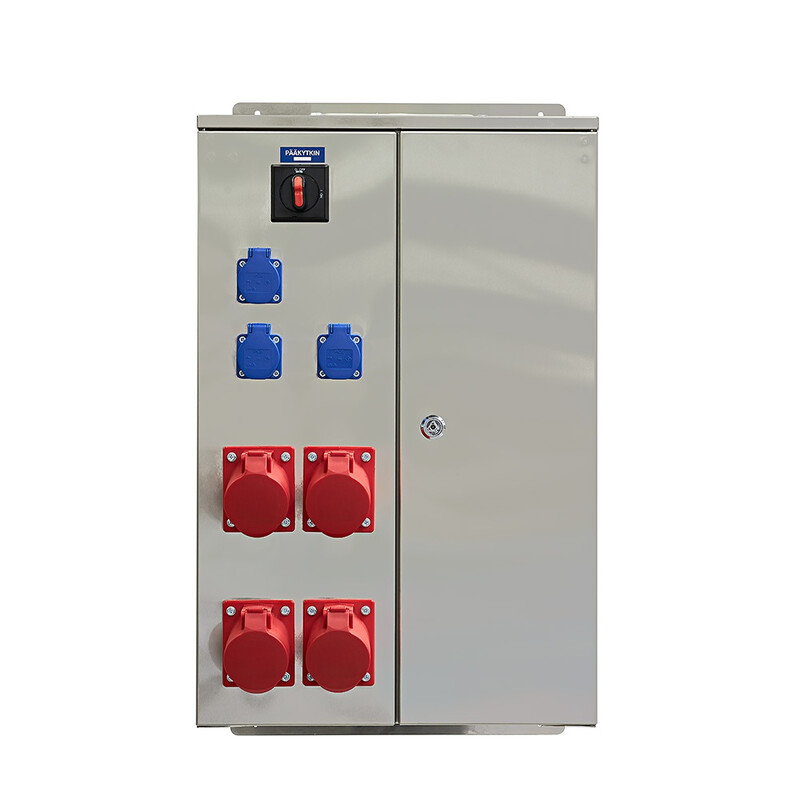

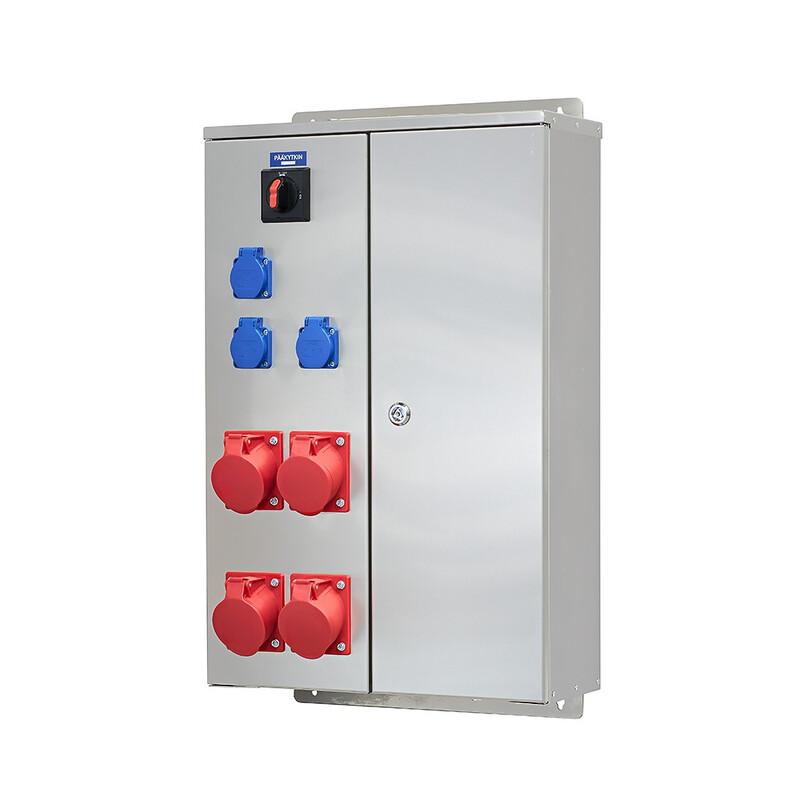

WORK PLACE CENTRE PINSERI 80.0043 80A IP44 RST
Product code
3436809
IP44 socket center, enclosure made of stainless steel (RST). Optional accessory: saddle flap (3436821).
Features- Rated current 80A
- Sockets protected by 30mA residual current device
- 4 sockets (5x16A) and 3 sockets (Suko)
The Pinseri socket center is designed for demanding applications such as industrial workplaces, ports, farms, and warehouses. The products are easy to use and install. The covers for the sockets and protective devices are hinged, facilitating access to the center. Both ends of the center are equipped with cable entry knockouts, allowing the supply cable to be connected from above or below. Internal fittings are provided for cable securing. The range covers socket centers with rated currents from 63A to 125A.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)CEE socket outlet combination (IEC 60309) (EC000379)
CEE socket outlet 16 A4x16A5p400V
CEE socket outlet 32 ANone
CEE socket outlet 63 ANone
CEE socket outlet 125 ANone
Number of socket outlets with protective contact CEE 7/3 (type F)3
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of socket outlets Danish standard (earthing pin, type K)0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Other fixtures and/or empty locations0
Power loss0 W
ProtectionOvercurrent switch
Leakage current typeA
Product codes
SAPCNA088
STK3436809
PLC3436809
GTIN/EAN6410034368092
Manufacturer part numberPINSERI80.0043RST
Vendor material number3436809
Basic information
Package measurements (L x W x H)758 x 452 x 237 mm
Package volume81.2 l
Package weight17 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121308
BrandUTU
VendorUTU OY
The country of origin stated by the supplierFinland
Documents (13)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
