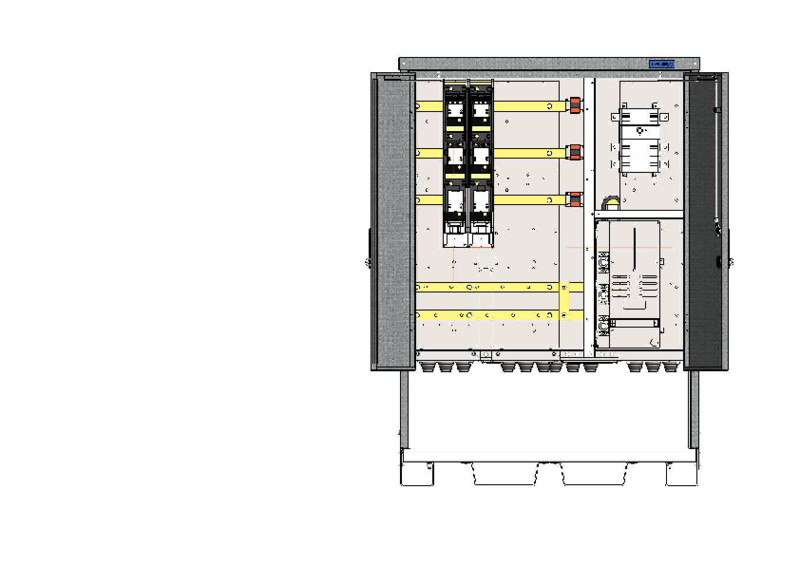

MAIN CENTRE FOR WORKSITE TPK 400C22 400A IP44 FE/AL
Product code
3434432
The 400 ampere main distribution board is equipped with a meter panel, 400/5 A current transformers, three 63 A sockets, three 32 A sockets, three 16 A sockets, and six Schuko sockets. Additionally, the board has two NH00/160 A and two NH2/250 A fuse disconnectors. The enclosure rating of the board is IP44.
The robust main distribution board, made of aluminum and galvanized steel, is designed to withstand demanding site conditions. VOHE site distribution boards are type-tested and certified by SGS Fimko Oy in accordance with the European standard EN 61439-4.
Features
- Rated current In of the board: 400 A
- Rated voltage Un of the board: 400 V (50 Hz)
- Rated insulation voltage Ui = Un
- Short-time withstand current Icw: 22 kA for 1 s
- Busbar rating: 630 A
- Derating factor: 0.7
- Enclosure rating: IP44
- Protection class I (protective earthing)
- Distribution system: TN-C-S
- EMC operating environment: A and B
- Circuit breakers with C curve
- Residual current device: Type A
- Dimensions (H x W x D): 1700 x 1200 x 1000 mm
- Weight: approximately 230 kg
- Current transformers: 400/5 A, class 0.2s, 1 VA
- Space reserved for electricity metering equipment
- 30 mA Type A residual current protection for 16 A sockets, 500 mA for other sockets
- Protective door lockable with a padlock
Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelDistributor cabinet
Rated voltage400 V
Rated current400 A
Connected load0 kVA
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)3
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)3
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)3
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Product codes
SAPANL832
STK3434432
PLC3434432
GTIN/EAN6410034344324
Manufacturer part numberTEHO - TPK 400C22
Vendor material number3434432
Basic information
Package measurements (L x W x H)1070 x 1320 x 1750 mm
Package volume2471.7 l
Package weight260 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121309
BrandVOHEK
VendorVOHEK OY
The country of origin stated by the supplierFinland
