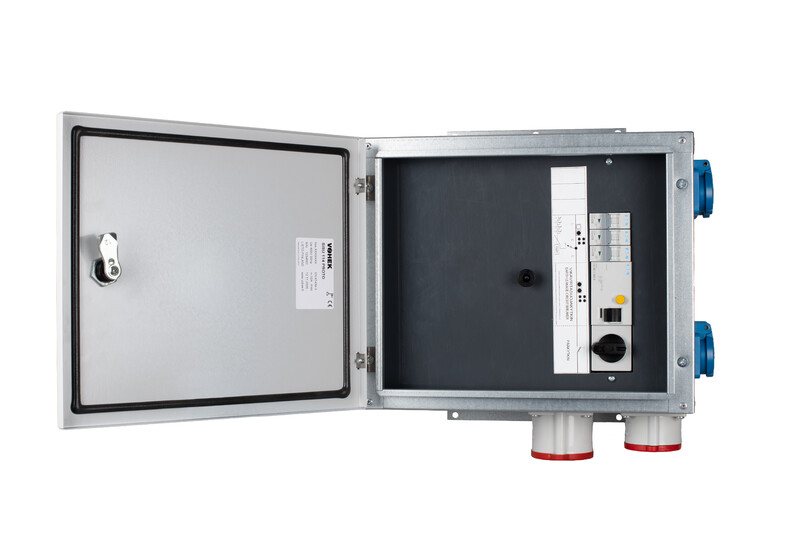

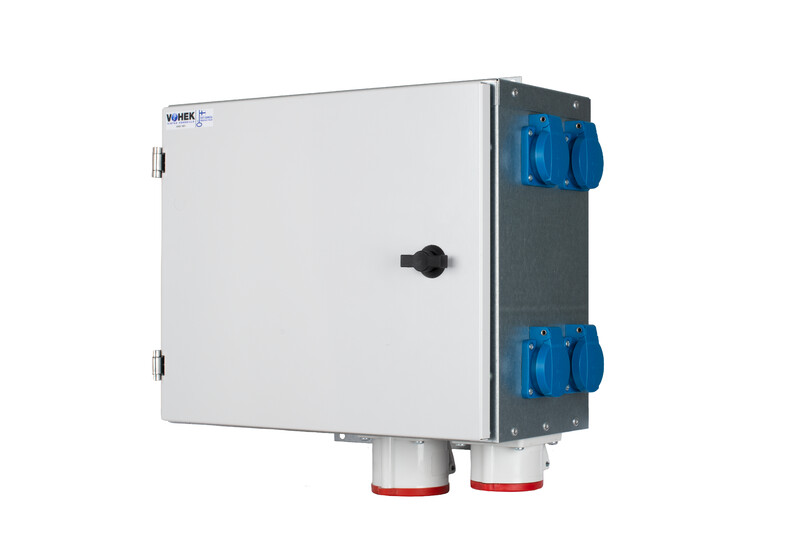

SOCKET-OUTLET CENTRE SISU 114 32A

The SISU power outlet center is a fixed installation system designed for small spaces such as garages, industrial workstations, and factory power distribution. All Vohek centers are manufactured in Lieto, Finland. In 2026, the product range will be updated and expanded with new solutions. Features - Enclosure made of hot-dip galvanized steel - Door painted light gray, color shade RAL 7047 - Equipped with 2 x 25 mm² branch connectors - HEL 10 FL13 multi-lamella for supply cables at the top and bottom of the enclosure - Optional separate protective roof (sstl 3434767) - Rated current InA 32 A - Rated voltage Un 400 V (50 Hz) - Rated insulation voltage Ui = Un - Short-time rated withstand current Icw 6 kA / 1 s - Derating factor 0.7 - Enclosure rating IP44 - Impact resistance IK08 - Protection class I (protective earthing) - Distribution system TN-S - EMC operating environments A and B - Circuit breakers with C curve (standard) - Top and bottom B lamella - 2 x 12 - 28mm - 6 x 6.5 - 15 mm - 2 x 6.5 - 11 mm - Residual current device type A - Corrosion resistance class C3 - Weight approximately 8 kg - Manufactured in accordance with standard EN 61439-3 This product description is an automated translation of the original Finnish description.
