SUBCENTRE FOR WORKSITE FE TAKP 63.KK
Product code
3434427

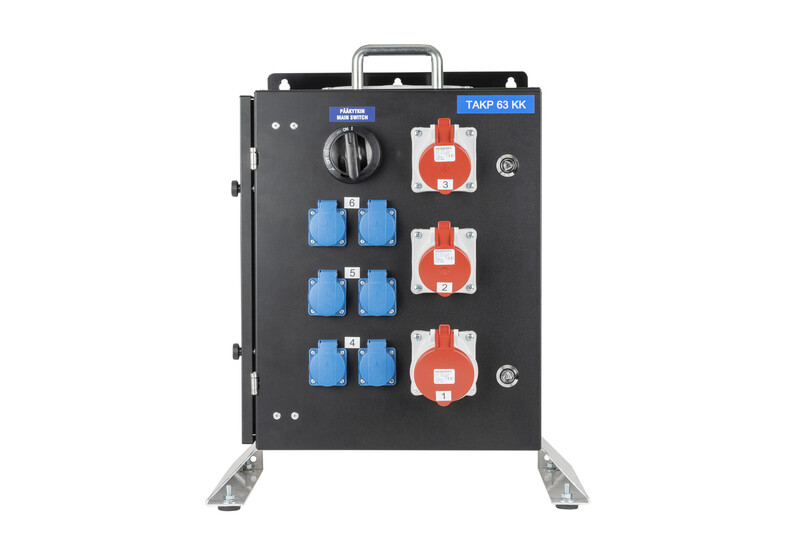

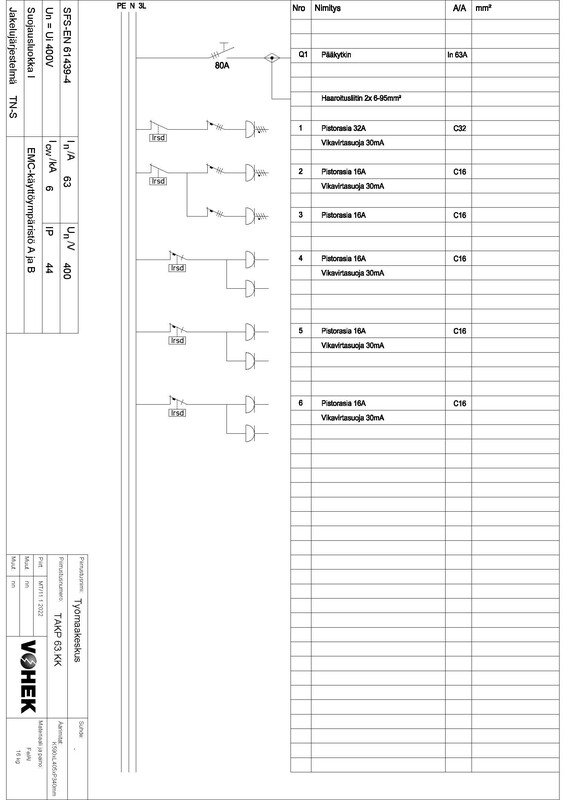

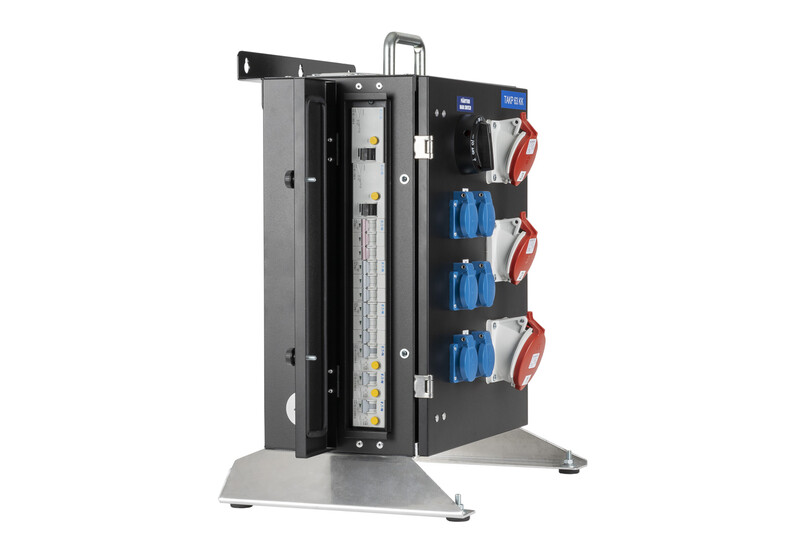

63A sub-distribution board with 6-95 mm² Al/Cu connectors. 1x32, 2x16A power outlets, 6x Schuko outlets. IP44. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelDistributor cabinet
Rated voltage230/400 V
Rated current63 A
Connected load0 kVA
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)6
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)1
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Product codes
SAPCQL407
STK3434427
PLC3434427
GTIN/EAN6429810720047
Manufacturer part numberTAKP 63.KK
Vendor material number3434427
Basic information
Package measurements (L x W x H)620 x 500 x 340 mm
Package volume105.4 l
Package weight16 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandVOHEK
VendorVOHEK OY
The country of origin stated by the supplierFinland
