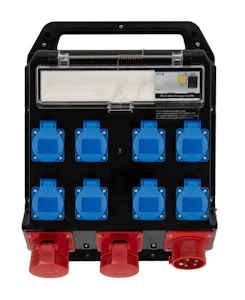

SUBCENTRE FOR WORKSITE TAKP MIDI 16 028 IP44
Product code
3434475
A compact portable distribution unit with multiple 1-phase sockets for smaller construction sites, renovations, extensions, etc. All sockets are protected by 30 mA residual current devices. Manufactured from impact-resistant durable plastic with a self-closing cover for fuses made of clear plastic. Equipped with a carrying handle and mounting holes.
All Vohek distribution units are manufactured in Finland.
Features
- Input: 5-pole/400V 16A socket outlet 1 pc
- Output: 2-pole/230V Schuko Type F 8 pcs
- Output: 5-pole/400V 16A power socket 2 pcs
- Residual current device 30 mA 1 pc
- Weight: 3.9 kg
- Short-circuit withstand capacity Icc 6 kA
- Protection class IP44 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelMobile end-distributor
Rated voltage400 V
Rated current16 A
Connected load0 kVA
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Product codes
SAPCJD227
STK3434475
PLC3434475
GTIN/EAN6410034344751
Manufacturer part numberTAKP MIDI 16.028
Vendor material number3434475
Basic information
Package measurements (L x W x H)110 x 320 x 410 mm
Package volume14.432 l
Package weight3.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121308
BrandVOHEK
VendorVOHEK OY
The country of origin stated by the supplierFinland
Documents (8)
Images
Brochures & documents
Links
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
