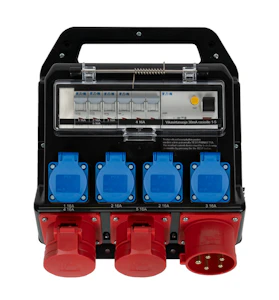

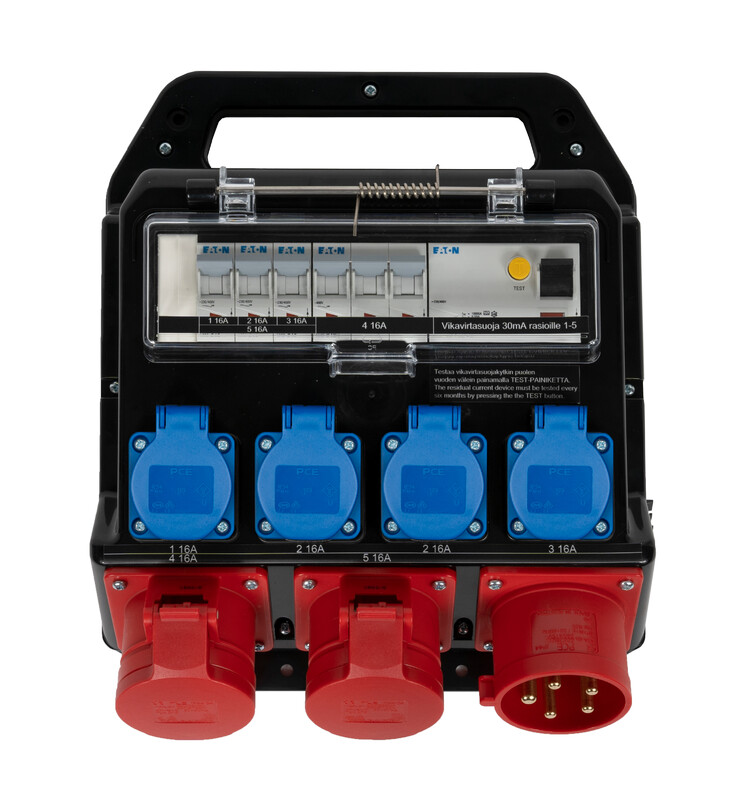

SUBCENTRE FOR WORKSITE TAKP MINI 32 024 IP44
Product code
3434471
Smaller portable central unit suitable for smaller work sites. All outlets protected with 30mA residual current devices. Manufactured from impact-resistant durable plastic. Self-closing plastic cover for fuses. Equipped with a carrying handle and mounting holes. Outlets protected by C-characteristic circuit breakers.
All Vohek central units are manufactured in Finland.
Features
- Input: 5-pole/400V 32A industrial plug 1 unit
- Output: 2-pole/230V Schuko Type F 4 outlets
- Output: 5-pole/400V 16A power socket 2 units
- Residual current device 30mA 1 unit
- Weight: 2.8 kg
- Short-circuit withstand capacity Icc 6 kA
- Protection class IP44
Product details
Technical specifications
Product class (ETIM)Energy distributor for construction site (EC000484)
ModelMobile end-distributor
Rated voltage400 V
Rated current32 A
Connected load0 kVA
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)2
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)0
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)0
Product codes
SAPCJD225
STK3434471
PLC3434471
GTIN/EAN6410034344713
Manufacturer part numberTAKP MINI 32.024
Vendor material number3434471
Basic information
Package measurements (L x W x H)340 x 270 x 135 mm
Package volume12.393 l
Package weight2.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121309
BrandVOHEK
VendorVOHEK OY
The country of origin stated by the supplierFinland
