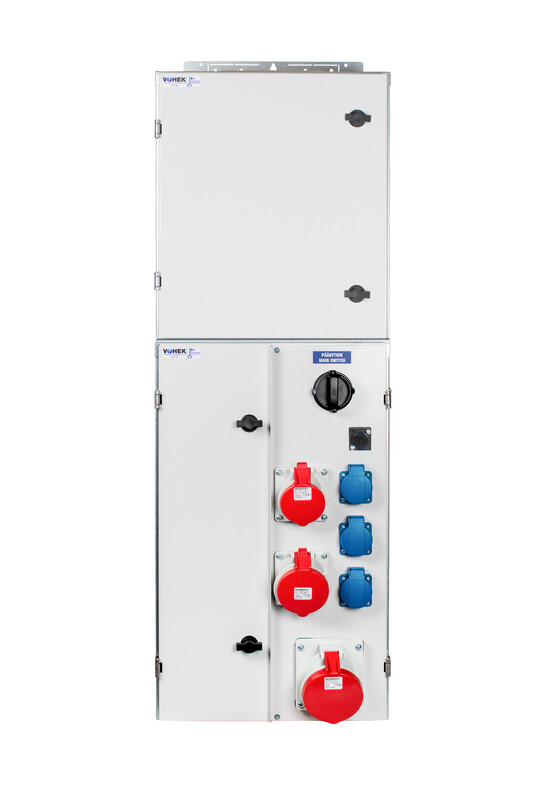

SOCKET-OUTLET CENTRE VOIMA 1113SM

POWER outlet center is a central system designed for fixed installation in industrial workplaces and for distribution of maintenance electricity in factories. All Vohek centers are manufactured in Lieto, Finland. The center range is updated and expanded. Improvements include enhanced installability, tightness, strength, and expandability. The enclosure is made of hot-dip galvanized steel. The door and outlet plate are painted light gray, color shade RAL 7047. Thanks to the layered structure, the entire base of the enclosure serves as the wiring space. The center comes standard with 2x95mm² branch connectors. For supply cables, the center has MC3 multi-lamella at the top and bottom ends as standard. An additional protective roof is available as an accessory for the center (sstl 3434767). - Rated current of the center InA 125A - Rated voltage of the center Un 400V (50Hz) - Rated insulation voltage Ui=Un - Short-time rated withstand current Icw 6kA 1s - 1500VA Protective voltage 24VAC - Power factor 0.7 - Enclosure rating IP44 - Impact resistance IK08 - Protection class I (protective earthing) - Distribution system TN-S - EMC operating environments A and B - Circuit breakers C-curve (standard) - Residual current device Type A - Cover color RAL 7047 - Corrosion resistance class C3 - Weight approx. 35kg The centers are manufactured in accordance with the European standard EN 61439-3. This product description is an automated translation of the original Finnish description.
