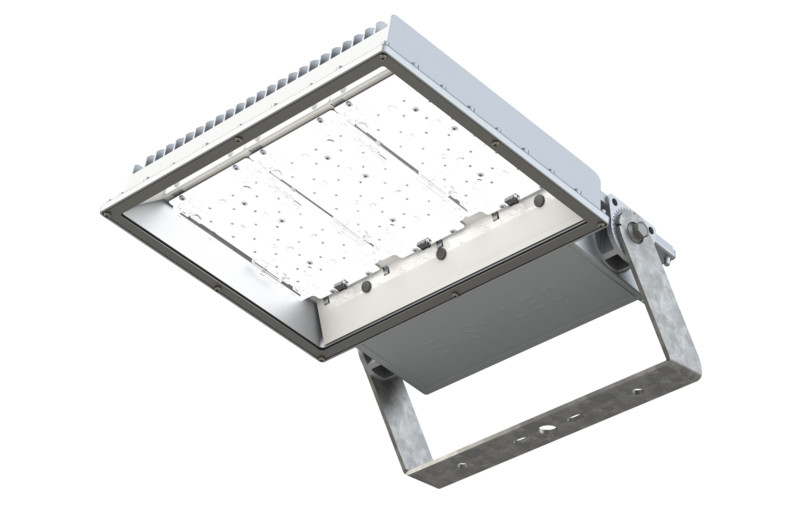

FLOODLIGHT ARA 90-1050 DALI 740 280W 33 klm
Product code
4502816
Easy LED ARA is a cost-effective area lighting alternative to replace traditional metal halide lamps. The robust die-cast aluminum housing with a powerful ARA optic withstands even demanding conditions. A sturdy arm makes it easy to install and aim. Directly replace, for example, 400 W metal halide floodlights. Extremely efficient for illuminating large areas—sports fields, parking lots, industrial areas.
Features
- Quality known from the BUBO product family
- Optimized, impact-resistant, and UV-protected Easy LED polycarbonate optics: UP-F reflector optics
- Protection rating: IP66, IK08
- Control: Standard DALI. Available with CLO, MainsDIM, and Kaamos
- Typical luminous efficacy of the luminaire: 110 lm/W
- Light quality: CRI>70; 4000K
- Made in Finland
- -40°C ... +40°C (95 % RH) outdoors
- -40°C ... +35°C (95 % RH) indoors
Maintenance-free service life of the luminaire: >100 kh
Connections:- Pre-installed rubber cable (plug available)
- Chain connection capability
Note! Specify at quotation/order if a plug or chain connection is required.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Lamp typeLED not exchangeable
Housing materialAluminium
Housing colourOther
Nominal current1050-1050 mA
Type of control gearLED operating device current-controlled
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIyes
Light distributionAsymmetric
Light outletDirect
Product codes
SAPCHS727
STK4502816
PLC4502816
GTIN/EAN6430064151365
Manufacturer part number1004006
Vendor material number4502816
Basic information
Package measurements (L x W x H)580 x 450 x 100 mm
Package volume26.1 l
Package weight9.86 kg
Base uniteach
Package units1 / 26
Package contents–
UNSPSC39111611
BrandEASY LED
VendorEASY LED OY
The country of origin stated by the supplierFinland
