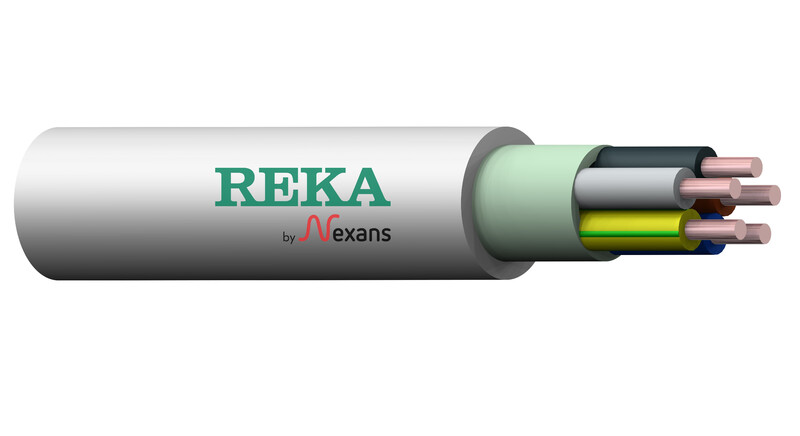

INSTALLATION CABLE MMJ 5G1,5 R50
Product code
0406990
Installation cable for fixed indoor and outdoor installation. Do not bury in ground or directly in concrete pour. Can be embedded in a grout-filled groove. The cable insulation must be protected from UV radiation. Installation must be carried out in accordance with national regulations and standards. The cable is non-propagating in fire class Eca. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG size16
Nominal cross section conductor (AWG)1.31 kcmil
Diameter conductor1.36 mm
Conductor categoryClass 1 = solid
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores5
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Product codes
SAPCCK685
STK0406990
PLC0406990
GTIN/EAN6410004069905
Manufacturer part number1102108-1
Vendor material number0406990
Basic information
Package measurements (L x W x H)1000 x 15.5 x 15.5 mm
Package volume0.26 l
Package weight0.168 kg
Base unitMeter
Package units50 / 2400
Package contents–
UNSPSC26121641
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
The country of origin stated by the supplierFinland
Documents (7)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.0752
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
