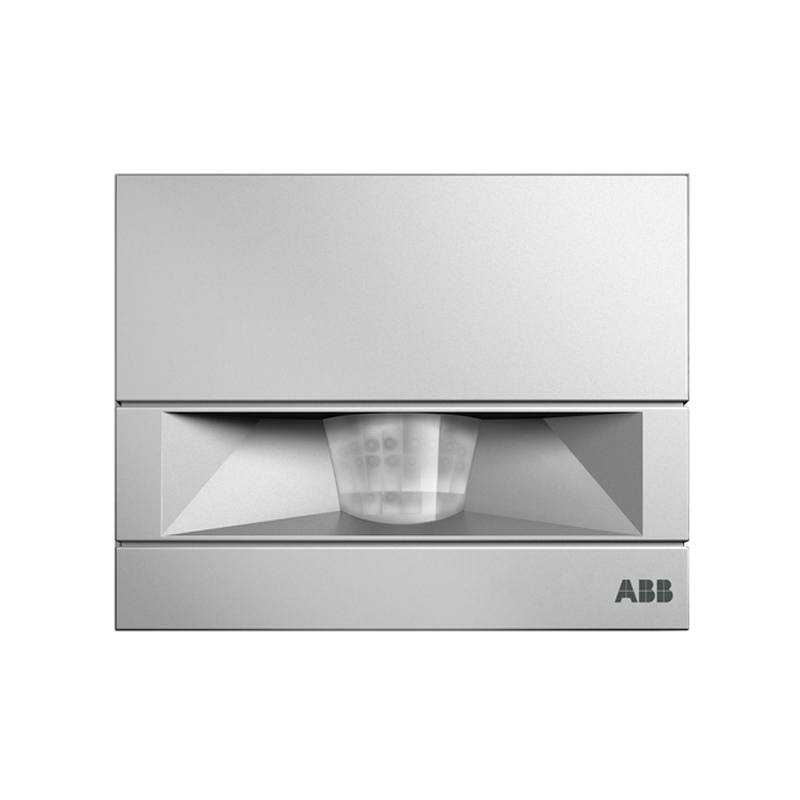

RÖRELSEVAKT 70 MASTERLINE 6AX IP55 ALU

Electronic movement detector for detecting thermal motion. With display for detection and operation mode. With ground surveillance. With high-quality lens for optimum detection. Adjustment of detection range via rotary control element. Surveillance density: 25 sectors with 100 switching segments. With integrated dismantling protection. With brightness-independent test mode for evaluating the detection zone. Additional possibility for switch-on via normally open push-button switch. Switch-off delay option: 1 / 3 or 5 min. Rated voltage: 230 V~, +10% / -10% Rated frequency: 50 Hz - 60 Hz Power dissipation: 1 W Outputs: 1 Normally open contact, potential-bound Suitable for: ohmic, capacitive and inductive loads Rated current: 6 AX, cos ?0.6 Rated power: 1380 W/VA Protection class (Device): IP 55 Temperature range (Device): -25 °C - 55 °C Detection range: frontal: 12 m lateral: 4 m Brightness limit value: 3 Lux - Up to daytime operation Dimensions: (L x W x D): 100 mm x 125 mm x 33 mm Mounting height: - 2.5 m
